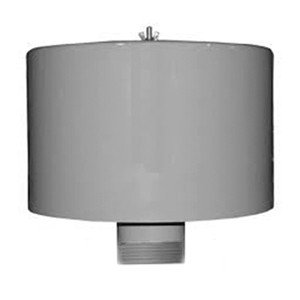

Solberg FS-19P-150 | FS-Series Compact 1.5" Inlet Filter Silencer

Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
FS-19P-150
Vendor
Solberg
Inventory

Product Summary

Solberg

Regular price $55.00 USD
Sale price Regular price $68.00 USD MSRP Unit price $55.00 USD
Shipping calculated at checkout.
Product Details

Solberg FS Series 1/2"-6" Filter Silencers

Compact Filter Silencers with Standard Filter Design, Up to 1100 SCFM (1870 m3/hr)
- 99%+ removal efficiency standard Polyester: 5 microns, Paper: 2 microns
- Pressure drop graphs available upon request
- Low pressure drop center bracket and outlet pipe design
- Interchangeable elements
- Continuous Temperature Minimum: -15° F (-26° C)
- Continuous Temperature Maximum: 220° F (104° C)
- Filter change out differential: 10"-15" in. H2O above initial delta P
- Fully drawn weatherhood allowing for no welds to rust and stopping them from vibrating apart
- Durable carbon steel construction with baked enamel finish and powder coated weatherhood
- Epoxy coated finish- Tubular silencing design. The tube is positioned to maximize attenuation and air flow while minimizing pressure drop
- Typical noise attenuation up to 15 dB's (due to the wide range of applications and machines these units are used on, a single graph is insufficient. Please inquire for your specific requirement)

Options (upon request): Available in Stainless Steel (option upon request) -
Hot dipped galvanized housings (option upon request) - Various elements available - Various media for different environments - 1/8" tap holes available for 3" and larger connections - FPT Inlet/NPT outlet combination available - Side Access Silencer Filters (LQB Series) for space restricted enclosures (select models) - - Specialty media and gaskets/seals for custom installations/applications

Suggested Applications: Ash Handling - Blowers-Side Channel - Compressor-Piston - Compressor-Screw - Construction\Contractor Industry - Dock Controls - Envelope Manufacturing - Hydraulic Breathers - fine filtration - Pneumatic Conveying Systems - Sparging - Waste Water Aeration - Workshop - Industrial & Severe Duty - Blowers-PD Type
