Solberg ST-235P-400C ST-Series See-Through Compact 4" Inlet Vacuum Pump Filter

Product images are for illustrative purposes only and may differ from the actual product.

Product Information

SKU
ST-235P-400C
Vendor
Solberg

Product Summary

Solberg

Regular price $1,210.00 USD
Sale price Regular price $1,205.00 USD MSRP Unit price $1,210.00 USD
Shipping calculated at checkout.
Product Details

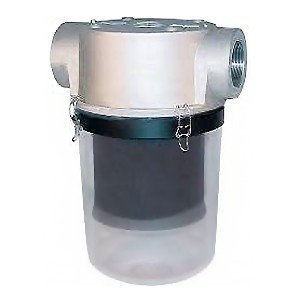

Solberg ST Series, See-Through 1"-4" Inlet Vacuum Pump Filter
- "T" Style Inlet Vacuum Filters, Up to 520 SCFM (884 m3/hr)
- Polyester Element: 99%+ removal efficiency standard to 5 micron
- Paper Element: 99%+ removal efficiency standard to 2 micron
- ST Series Style offers 1/4" differential gauge ports: 2" to 6"
- Compact design for space restrictions; min. service area
- Inlet above element for extended element life and maintenance intervals
- "T" style design minimizes piping requirements
- Continuous temperature minimum: -15° F (-26° C)
- Continuous temperature rating complete assembly maximum: 220°F (104°C)
- Temperature Rating on See?through bucket only maximum: 257°F (125°C)
- Filter change out differential: 10"-15" in. H2O above initial delta P
- Vacuum rating: Gas tight seal
- Low pressure drop
- Element is secured at the top casting
- Built in Integrated baffle design
- Cast, corrosion resistant aluminum top w/machined connections
- 2" to 2-1/2" = M12 taps for mounting brackets
- 3" to 4" = 1/2-13 M12 taps for mounting brackets
- 5" to 6" = M12 taps for mounting brackets
- High impact and shatter resistant bucket
- Bucket has a high tensile strength for dimensional stability
- Bucket material is made from polycarbonate
- Increased holding capacity (easy field cleaning)
- See-through bucket allows easy visual inspection

Options (upon request): Various media available - Pressure drop graphs available upon request - Drill points for additional taps (delta p gauges, brackets) - Multiple SpinMeister Configuration: Inlet Filter Assemblies and Inlet Vacuum Filters - Swing bolts for heavy duty environments - 1" up to 1?1/2" housings offer dimples for optional gauge ports and mounting bracket taps - Epoxy coated housings - Drain ports - piece extender on select models - ISO flange connections: NW25, NW40 (select models)

Suggested Applications: Ash Handling - Cement - Envelope Manufacturing - Factory Automation - Glass, Ceramic-Vacuum - Paper Processing - Pneumatic Conveying Systems - Vacuum Packaging - Vacuum Pumps & Systems - Waste Water Aeration - Woodworking - Remote Installations for Piston and Screw Compressors - Routing Industry

Note: FPT Connection Data Dimension tolerance plus 1/4"
