ST Series SpinMeister Vacuum Filters-Extreme Duty

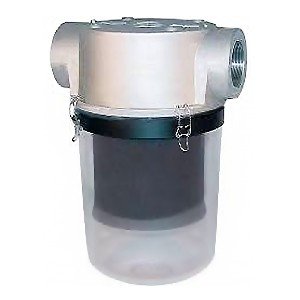

Extreme Duty See-Through SpinMeister Inlet Vacuum Filters
- Polyester Element: 99%+ removal efficiency standard to 5 micron
- Paper Element: 99%+ removal efficiency standard to 2 micron
- Moisture resistant
- Centrifugal flow forces the larger particulate through the side louver; then the primary element filters the micron sized particulate
- EXTREME DUTY filtration when combined with Solberg's CT Series inlet vacuum filter
- See-Through assembly Standard for "ST" style series: Significan dirt holding capacity, Clip release for easy maintenance
- Easy maintenance with clip release bottom shell
- Positive sealing assembly
- Cast aluminum top with built in baffle design and machined connections
- Continuous Temperature Minimum: -10° F ( -26° C)
- Continuous Temperature Maximum: 220°F (104°C)
- SpinMeister is 85+% efficient at 15 micron
- Patented pending on Integrated Low Pressure SpinMeister

Options (upon request): Multiple SpinMeister Configuration Inlet Filter Assemblies and Inlet Vacuum Filters - Various media available

Suggested Applications: Food Processing - Vacuum Systems-Central - Woodworking - Plastics - Material Handling Systems - Pneumatic Conveying Systems - Screw Compressors - Vacuum Freeze Dry - Vacuum Lifters

Technical Data

solberg-st-series-extreme-duty-data-sheet
