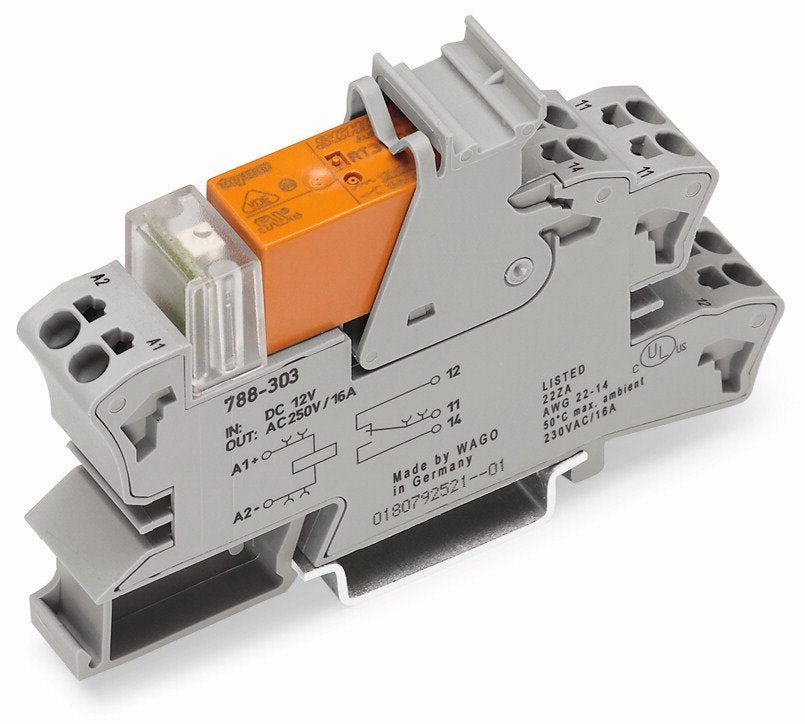

Wago 788-315 | Relay Socket with Relay and Status Indicator

Product images are for illustrative purposes only and may differ from the actual product.

Product Information


Product Summary


Regular price $19.74 USD
Sale price Regular price $21.15 USD MSRP Unit price $19.74 USD
Shipping calculated at checkout.
Product Details

Relay module; Nominal input voltage: 110 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray

Technical data

Control Circuit:
Nominal input voltage UN DC 110 V
Input voltage range ±10 %
Nominal input current at UN 6 mA

Load circuit:
Number of changeover/switchover contacts 2
Contact material (relay) AgNi 90/10
Limiting continuous current 8 A
Inrush current (resistive) max. (AC) 15 A / 4 s
Switching voltage (max.) AC 250 V
Switching power (resistive) max. AC 2000 VA; DC (see load limit curve)
Switching capacity AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
Recommended minimum load 12 V / 10 mA
Pull-in time (typ.) 8ms
Drop-out time (typ.) 13ms
Bounce time (typ.) 10ms
Electrical life (NO; resistive load; 23 °C) 10 x 10³ switching operations
Mechanical life 30 x 10⁶ switching operations
Switching frequency with/without load (max.) 6 min-1 / 1200 min-1
