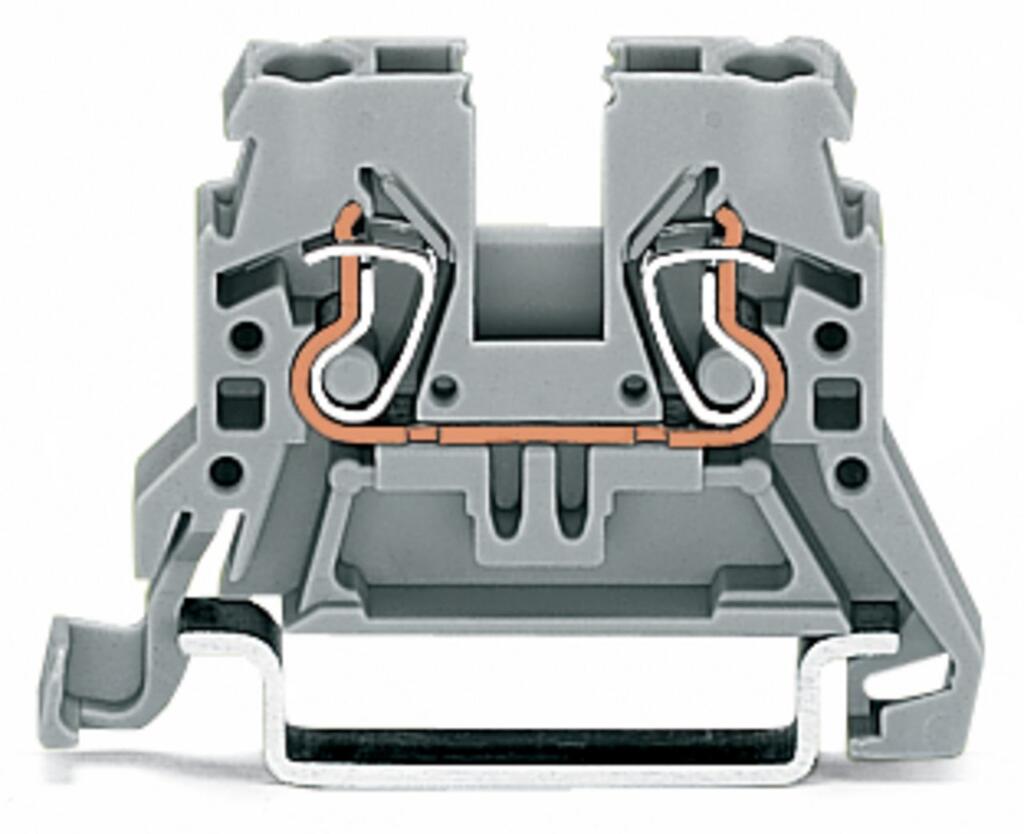

Wago 870-901 2-Conductor Through Terminal Block

SKU#: 870-901

Vendor: Wago

Class: Feed-through terminal block
Group: Rail mounted terminal block with CCC
Manufacture No.: 897-901

Wago 870-923 / RoHS Compliant

  • Ratings per IEC/EN 60947-7-1
  • Rated voltage (III / 3) [V] 500 [V]
  • Rated impulse voltage (III / 3) [kV] 6 [kV]
  • Rated current [A] 24 [A]
  • Number of levels 1
  • Connection technology CAGE CLAMP® COMPACT
  • Number of connection points connector 2
  • Actuation type Operating tool
  • Connectable conductor materials Copper
  • Solid conductor 0.08 ... 2.5 mm² / 28 ... 12 AWG
  • Fine-stranded conductor 0.08 ... 4 mm² / 28 ... 12 AWG
  • Strip length 6 ... 7 mm / 0.24 ... 0.28 Inch
  • Type of wiring Front-entry wiring
  • Design horizontal
  • Marking level Side marking
  • Insulating material Polyamide 66 (PA 66)
  • Fire load [MJ] 0.08 [MJ]
  • Safety information 1 Max. insulation diameter: 4.4mm
