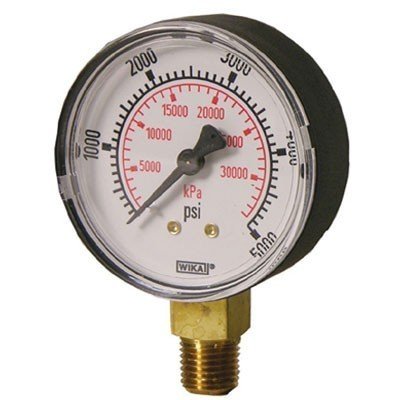

Product Design Features:
Case: ABS, Black Plastic Case
Mounting: U-Clamp Panel Mounting for US Size
U-Clamp: Steel Zinc Plated
Wetted Part: Copper Alloy (Brass)
Window: Snap-in Acrylic with a rim, round U-clamp bracket, steel zinc plated
Profile Ring: Stainless steel polished
Pointer: Black Plastic
Dial: White Plastic
Accuracy: + 3/2/3% of span / ASME B40.100 Grade B
Steady Working pressure: 3/4 of full scale value
Fluctuating working pressure: 2/3 of full scale value
Short working pressure: full scale value
Ambient Operating Temperature: -40°F to 140°F (-40°C to 60°C)
Media Operating Temperature: 140°F (+60°C) maximum

Applications: Hydraulic and pneumatic systems - Pumps, compressors, water systems, regulators - Suitable for fluid medium which does not clog connection port or corrode copper alloy
